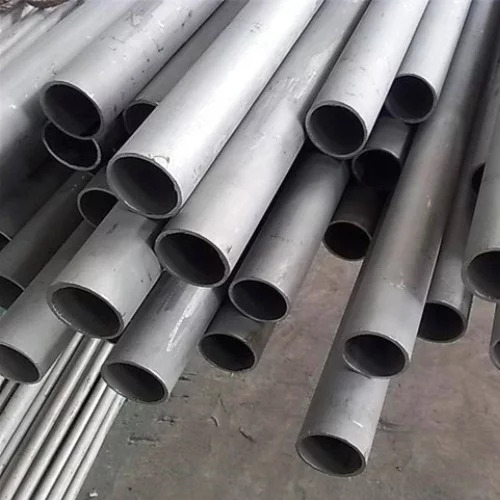

316 Seamless Stainless Steel Pipe
204 INR/Kilograms
Product Details:
- Surface Finish Mirror Polish
- Application Oil Pipe Construction
- Product Type Pipe
- Material Stainless Steel
- Type Seamless
- Shape Round
- Standard ASTM
- Click to View more
X
316 Seamless Stainless Steel Pipe Price And Quantity
- 204 INR/Kilograms
- 1 Piece
316 Seamless Stainless Steel Pipe Product Specifications
- ASTM
- Round
- Oil Pipe Construction
- Mirror Polish
- Seamless
- Pipe
- Stainless Steel
316 Seamless Stainless Steel Pipe Trade Information
- Telegraphic Transfer (T/T)
- 50 Piece Per Day
- 1 Week
- Africa Middle East Asia Western Europe Australia South America Central America Eastern Europe North America
- All India
Product Description
316 Seamless Stainless Steel Pipe
Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. Grade 316 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.
COLD WORKING
Grade 316 is readily brake or roll formed into a variety of parts. It is also suited to stamping, heading and drawing but post work annealing is recommended to relieve internal stresses.
Cold working will increase both strength and hardness of 316 stainless steel.
MACHINABILITY
316 stainless steel has good machinability. Machining can be enhanced using the following rules:
- Cutting edges must be kept sharp. Dull edges cause excess work hardening.
- Cuts should be light but deep enough to prevent work hardening by riding on the surface of the material.
- Chip breakers should be employed to assist in ensuring swarf remains clear of the work
- Low thermal conductivity of austenitic alloys results in heat concentrating at the cutting edges. This means coolants and lubricants are necessary and must be used in large quantities.
316 stainless steel cannot be hardened by heat treatment.
Solution treatment or annealing can be done by rapid cooling after heating to 1010-1120°C.
Specifications And Range :-"
- Grade :-"304 , 304L , 304H, 309H, 310H , 316 , 316H ,316L , 316 LN , 317 , 317L , 321 , 321H , 347 , 347H
- Size: 1/2"NB To 24"NB
- Sch :-"SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS
- Make :- Imported "/ "Sumitomo / indian"
Initially developed for use in paper mills 316 stainless steel is now typically used in:
- Food processing equipment
- Brewery equipment
- Chemical and petrochemical equipment
- Laboratory benches & equipment
- Coastal architectural panelling
- Coastal balustrading
- Boat fittings
- Chemical transportation containers
- Heat exchangers
- Mining screens
- Nuts and bolts
- Springs
- Medical implant
316 Stainless Steel Pipe Specification
STAINLESS STEEL 316 PIPE, 316 STAINLESS STEEL SEAMLESS PIPE SPECIFICATION
| SS 316 Pipe Dimensions | ASTM, ASME, API |
| Stainless Steel 316 Pipe Sizes (Seamless) | 1/2" NB - 16" NB |
| 316 SS Pipe SIzes (ERW) | 1/2" NB - 24" NB |
| Stainless Steel 316 Pipe Sizes (EFW) | 6" NB - 100" NB |
| Wall Thickness of Seamless SS Pipe | Schedule 5S - Schedule XXS (heavier on request) |
| Trilok Steel Indutsries Specialized in | Large Diameter Size |
| End | Plain End, Beveled End, Treaded |
| Length | Single Random, Double Random & Cut Length. |
| SS 316 Pipe Other Materials Testing | NACE MR0175, H2 SERVICE, OXYGEN SERVICE, CRYO SERVICE, etc |
| Processing | Cut-to-length, polishing,Polished Grit 120 - 600 |
316 Stainless Steel Pipe Properties
Stainless Steel 316 Pipe Chemical Composition
The below table shows the chemical composition of the used for Stainless Steel Pipes:
| STAINLESS STEEL 316 PIPE | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
|
|
|
Stainless Steel 316 Pipe Properties
316 STAINLESS STEEL PIPE Mechanical Properties :
| Material | Heat | Temperature | Tensile Strength | Yield Strength | Elongation %, Min |
|
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. |
|
|
|
| º F(º C) |
|
|
|
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
Stainless Steel 316 Pipes Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 316 | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Equivalent Grades for 316 Stainless Steel Pipe
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316 | S31600 | 304S11 | 58E | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
Available Stock of SS 316 Pipe , SS 316 Seamless Pipe
| stainless steel 316 pipe schedule 10 Supplier | Stainless Steel Pipe AISI 316 Supplier |
| asme 316 stainless steel pipe Supplier | 316 Stainless Steel Exhaust Pipe Supplier |
| Stainless Steel 316 Oval Pipe Supplier | Stainless Steel Hollow Pipe Exporter |
| Stainless Steel 316 Electropolished Pipe | 316 stainless steel pipe for sale |
| Stainless Steel 316 Ornamental Pipe | 316 stainless steel pipe sch 40 |
| Stainless Steel 316 Hexagonal Pipes Supplier | 316 stainless steel pipe schedule 80 Supplier |
| Stainless Steel 316 Exhaust Pipe Suppliers | 316 stainless steel pipe suppliers |
| 316 stainless steel flue pipe Manufacturer | 316 Seamless Stainless Steel Pipe Supplier |
| 316 Stainless Steel Seamless Pipes supplier | schedule 20 316 Stainless Steel Pipe Supplier |
| 1/2" NB in Thickness Schedule 316 Stainless Steel Pipe | 316 stainless steel pipe sch 10 Supplier |
| 4" NB in Thickness Schedule 316 SS Pipe Supplier | 316 Stainless Steel Schedule 40 Pipes Supplier |
| 5" NB in Thickness Schedule 316 SS Pipe Supplier | Schedule 40 Stainless Steel 316 Pipe Supplier |
| 6" NB in Thickness Schedule 316 Stainless Steel Pipe Supplier | Schedule 80 Stainless Steel 316 Pipe Supplier |
| 7" NB in Thickness Schedule 316 Stainless Steel Pipe Supplier | Schedule 10 Stainless Steel 316 Pipe Supplier |
| ASTM 316 Stainless Steel Pipe | AISI 316 Seamless Stainless Steel Pipe |
| SCH 40 316 SS Pipe Exporters in India | Distributors of SCH 80 316 SS Pipe |
| 8" NB in Thickness Schedule 316 SS Pipe Supplier | Sch 5 Stainless Steel 316 Pipe Supplier |
| 14" NB in Thickness Schedule 316 SS Pipe Supplier | Stainless Steel 316 Pipe Sizes per meter |
| SCH 10 316 SS Pipe | 316 SS Schedule 40 pipe |
| 316 Stainless Steel Schedule 10 Pipe | 316 Stainless Steel Schedule 80 Pipe |
| 16" NB in Thickness Schedule 316 Stainless Steel Pipe Suppliers | Seamless Stainless Steel 316 Pipe Per Foot |
| 316 Stainless Steel Pipe Manufacturer | Schedule 10 316 Stainless Steel Pipe |
| 316 Stainless Steel Exhaust Pipe | Schedule 40 316 Stainless Steel Pipe |
| 18" NB in Thickness Schedule 316 Stainless Steel Pipe Suppliers | Austenitic Stainless Steel 316 Pipes Suppliers |
| Stainless Steel DIN 1.4301 Pipes Suppliers | Stainless Steel WERKSTOFF NR. 1.4301 Pipe Suppliers |
| 6 inch 316 stainless steel pipe Suppliers | 2 inch 316 stainless steel pipe suppliers |
| stainless steel pipe 316 schedule 40 Suppliers | 8 inch 316 stainless steel pipe suppliers |
| 316 Stainless Steel Pipe Schedule 160 suppliers | 316 Stainless Steel Pipe Schedule 80 suppliers |
| SS 316 Pipe Suppliers | 316 Stainless Steel LSAW Pipes Dealers |
| 316 SS Hollow Pipe Supplier | Cold Rolled 316 Stainless Steel Pipe Supplier |
We are Manufacturer, Stockist, Dealer, Trader, Supplier, Exporter and Vendor of 316 Seamless Stainless Steel Pipe in Bombay/ Mumbai.
